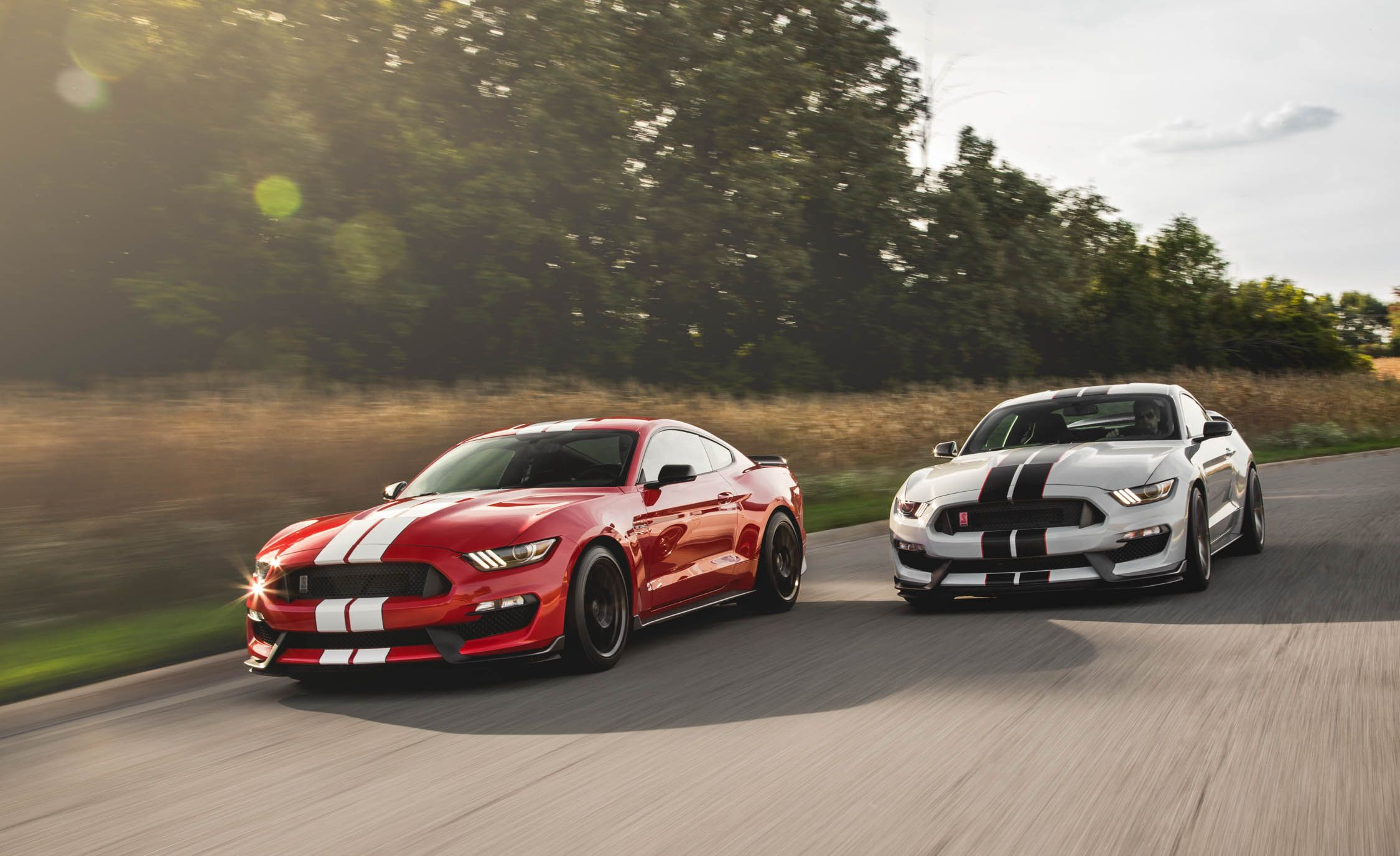

2015-2017 Shelby GT350: Essential Upgrades Guide
The 5.2L "Voodoo" flat-plane crank V8 and track-honed chassis of the GT350 make it a modern legend. While exceptional out of the box, targeted upgrades can enhance its capabilities for both street and track.
While the high-revving Voodoo engine is a masterpiece, adding a supercharger is the ultimate power upgrade, transforming the car into a tire-shredding supercar competitor.
Key Consideration
The engine’s high RPM and compression require a conservative, safe tune (typically 550–650 whp) to preserve reliability. Major supporting mods are not always mandatory but are highly recommended.
Popular Supercharger Kits
Whipple, VMP, Roush, and ProCharger offer complete positive-displacement (roots/twin-screw) kits specifically designed for the GT350’s unique architecture.
Critical Supporting Upgrades
- Fuel System: Upgrade fuel pumps (e.g., DW400) and injectors to support increased demand.
- Cooling: A larger or auxiliary heat exchanger for the supercharger coolant is vital to prevent heat soak and power loss.
- Clutch: The factory clutch may struggle with the increased torque. McLeod and SPEC offer strong upgrade options.
- Exhaust: An aftermarket cat-back or header-back system helps the engine breathe more efficiently under boost.
The GT350’s MagneRide suspension is excellent from the factory, but certain components can be optimized for specific use cases.
- Springs & Sway Bars: Lowering springs (Swift, Ford Performance) or adjustable sway bars (BMR, Steeda) reduce body roll and allow fine-tuning between street comfort and track rotation.
- Alignment & Corner Weighting: An aggressive track alignment (maximum negative camber) and professional corner balancing are cost-effective modifications with significant performance gains.
- Bushings & Cradle Lockout: Upgrading control arm bushings and installing a differential or rear cradle lockout kit (BMR, Steeda) eliminates wheel hop and improves rear-end precision, especially under hard acceleration.
- Brakes: While the factory 394 mm Brembo brakes are excellent, track pads (Carbotech, Ferodo), stainless steel brake lines, and high-temperature brake fluid are essential for repeated hard use.
Wheels: Lighter forged wheels (e.g., Forgeline, APEX) reduce unsprung weight, improving acceleration, braking, and turn-in. Wider front wheels (19×11” square setups are popular) allow for more tire options.
Tires: Upgrading to a 200-treadwear extreme-performance tire (Michelin Pilot Sport Cup 2, Goodyear Supercar 3R) or a modern max-performance summer tire (Michelin PS4S) is the single biggest handling improvement.
Aero: Functional front splitter extensions and a rear swan-neck wing (e.g., APR, Anderson Composites) improve high-speed stability and front-to-rear aerodynamic balance without excessive drag.
Mustang GT350 – Research Driven Upgrades
Our R&D team tests every part under real driving and track conditions to ensure peak output from the GT350’s naturally aspirated 5.2L Voodoo engine. Each upgrade is data-driven and precision evaluated for durability, airflow efficiency, and power gain. With Fastlane, performance is not assumed — it’s proven.
For all Ford vehicles PCM tuning is the most important aspect of a build. From improving horsepower to tuning 10 speed transmissions this is the magic in getting the most from your Mustang, F150 and all other Ford vehicles. Ecoboost Mustangs and F150s can pick up crazy torque and horsepower numbers with only a few bolt ons and a computer calibration. Tuning your Ford vehicle addresses everything from speed limiters to cam timing. Fastlane always recommends 93 octane fuel and new spark plugs. We utilize software from HPTuners, SCT and Livernois. Dyno tuning can be done as well on our Dynojet 224. Please call us for quotes and information on tunes. Vehicles must be in good mechanical condition including tires, fluids and maintenance in order to proceed with tuning/calibration.
Mustang GT350 – Built for Performance
Fastlane upgrades ensure your GT350 performs when it matters most. From strengthened braking components to cooling enhancements and high-performance fluids — every upgrade is designed to handle heat, speed, and pressure. Take on corners, straights, and long drives with confidence and stability.
Performance Highlights
-
526 HORSEPOWER
-
5.2 ENGINE
-
180 TOP SPEED
